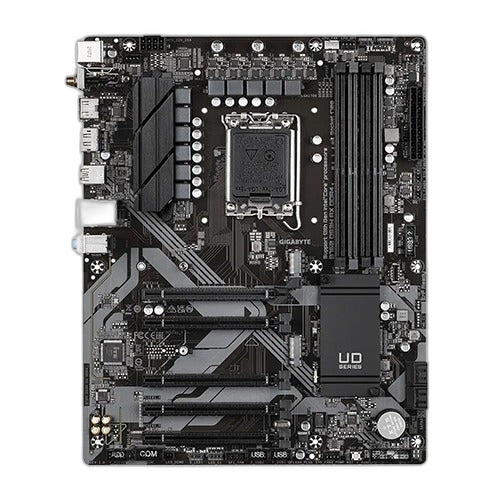

Gigabyte B760 DS3H AX DDR4 Motherboard
$198.91
Sale price
$198.91
Regular price
Skip to product information
CPU Support: LGA1700 socket, compatible with 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. Chipset: Intel® B760 Express Chipset. Memory: 4 x DDR4 DIMM slots, supporting up to 128 GB of system memory. Dual-channel memory architecture. Support for DDR4 memory modules with frequencies up to 5333 MHz (OC). Support for Extreme Memory Profile (XMP) modules. Expansion Slots: 1 x PCIe 4.0 x16 slot. 1 x PCIe 3.0 x16 slot (operating at x4). 2 x PCIe 3.0 x1 slots. Storage: 2 x M.2 connectors: 1 x M.2 slot (M2A_CPU) supporting PCIe 4.0 x4/x2 SSDs. 1 x M.2 slot (M2P_SB) supporting PCIe 4.0 x4/x2 and SATA SSDs. 4 x SATA 6 Gbps ports. Networking: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). Intel® Wi-Fi 6E AX211 module, supporting 802.11a/b/g/n/ac/ax and Bluetooth® 5.3. USB Ports: Rear Panel: 1 x USB 3.2 Gen 2x2 Type-C® port (up to 20 Gbps). 1 x USB 3.2 Gen 2 Type-A port (up to 10 Gbps). 4 x USB 3.2 Gen 1 ports. 4 x USB 2.0/1.1 ports. Internal Headers: 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports). 2 x USB 2.0/1.1 headers (supporting 4 USB 2.0/1.1 ports). Audio: Realtek Audio CODEC. High-definition audio with 2/4/5.1/7.1-channel support. Display Outputs: 1 x HDMI port (HDMI 2.0, supporting a maximum resolution of 4096x2160 at 60 Hz). 1 x DisplayPort (DisplayPort 1.2, supporting a maximum resolution of 4096x2304 at 60 Hz). Form Factor: ATX; dimensions: 30.5 cm x 24.4 cm.
